Caractéristiques

Transmission Type: Manual

Condition: New

Emission Standard: Euro 3

Fuel Type: Diesel

Tank Volume: 10000L

è½¦èº«å°ºå¯¸: 7500x2300x3000

Horsepower: 160

Gross Vehicle Weight: 13800

After-sales Service Provided: Online support, Service Machinery Overseas

Capacity (Load): 11 - 20T

Product name: Sewage Vacuum Tank Trucks

Color: Request Customized

Chassis brand: FAW

Drive wheel: 4X2

Pump: Special Vacuum Pump

Tank capacity: 10CBM

Certificate: ISO9001 CCC

Tank Material: Q235 Carbon Steel Stainless Steel

Engine: 160HP

Informations de base

Certification: ISO9001 CCC

Conditions de paiement et expédition

Packaging Details: Containers, ro-ro ships, deck ships

Description de produit

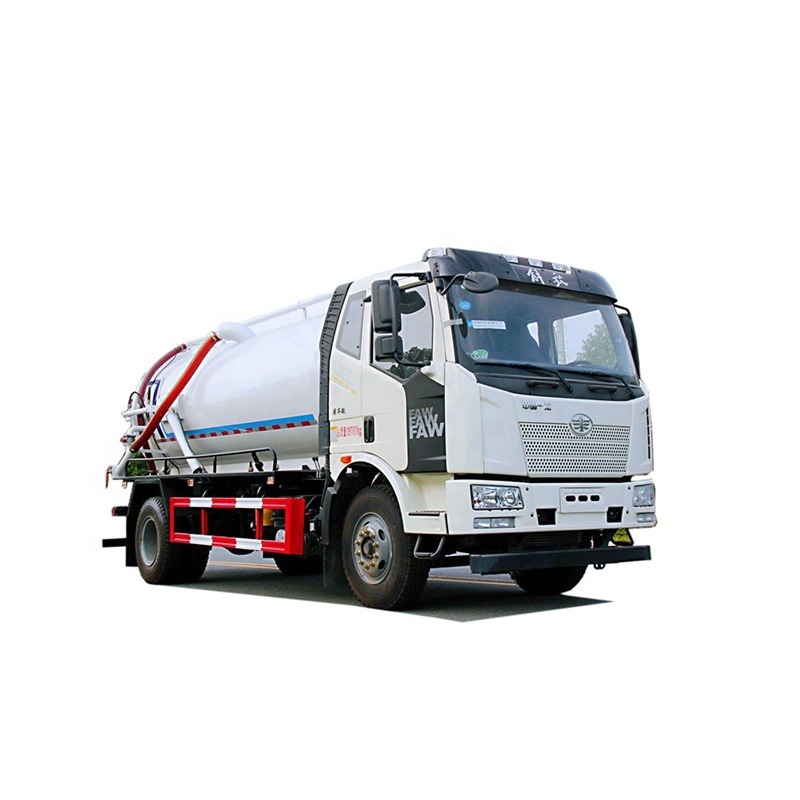

Faw 10CBM Vacuum Sewage Suction Trucks for sale

I . DETAILED VIEW OF SEWAGE SUCTION TRUCK

II. SPECIFICATION OF SEWAGE SUCTION TRUCK

The special fuction specification
Tank volume	10 m3
Sewage suction pump	Vacuum pump
Max time of fullfilling the tank	5 min
Max time of empty the tank	4 min
Max suction depth	8 m
Diameter of outlet/inlet	50 mm
Working pressure	8500Pa
Theoretical flow	120L/S
Standard configuration	1. tank(material: carbon steel, stainless steel, PP) 2. vacuum sewage suction pump 3. PTO 4. transmission shaft 5. moisture separator 6. oil-water separator 7. Multiple way reversing valve 8. discharge valve 9. sewage view window 10. vacuum pressure gauge 11. Pipe network system 12. Hydraulic system 13. hand washing device
Optional configuration	1. Liquid level view tube 2. View window at the rear part 3. Hydraulic alarm 4. Water sprinkler and high pressure cleaning function

III. DESCRIPTION OF SEWAGE SUCTION TRUCK

IV . SEWAGE SUCTION TRUCK SERIES

V . SEWAGE SUCTION TRUCK WORKSHOP

VI . TRANSPORTATION & SHIPPING

VII . ABOUT US
